DYN-HF-HT6 Mini Tag on Metal
The miniature transponder is equipped with a absorbing materials and can additionally been used for applications on metal.
Integrated Circuit: NXP ICOde SLIX
Air Interface protocol: ISO 15 693, ISO 18 000-3 Mode 1
Operation frequency: 13,56 MHz
Memory: 1k bit

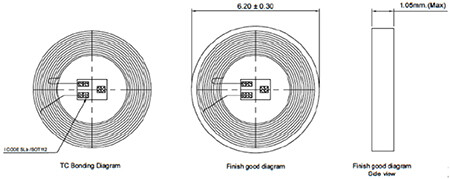

Mechanical dimensions: Diameter: 6,2 mm(± 0,3 mm), Thickness: 1,05 (+0,1 / -0,3 mm), Weight: < 1g, Housing material and Color: Epoxy resin
Magnetic Absorber: Magnetic Absorber HMSUS20080 für on-Metal applications
Resonance frequency: 13,9 MHz +/- 0,5 MHz
Operating temperature: 0°C / +50°C
Storage temperature: +90°C, 168 h; -20°C, 168h
