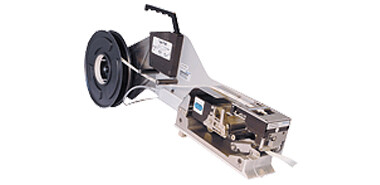

The automated label dispenser ALF14 from Brady can easily be implemented in consisting manufacturing facilities and automises the supply of labels. With the high sensor- and feeding speed it places the labels very precise and reliable. The liner width can ne adjusted easily and user-friendly and therefore avoids time-consuming interruptions.

Technical data

The new applicator-series ALF19 from Brady enable an effective integration of automated printed circuit board systems. Due to the compact but robust design the ALF19 only needs minimum of space in the production line and distinguishes itself by its fast running. The high marking accuracy, the fast change of materials and the remote access via WLAN for status query provide an increasement of production efficiency and therefore contribute for cost-savings.

The ALF19 is available in the following executions:

• ALF19-XS: max. label width is 18 mm
• ALF14-25: max. label wdith is 23 mm
• ALF-14-40: max. label width is 40 mm
• ALF-14-55: max. label width is 55 mm

For further information of the new Brady ALF19 please contact us!

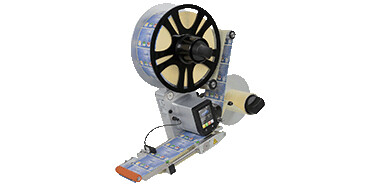

The cab HS / VS applicators impress with their convincing cost-performance ratio.

HS applicator: dispenses the label horizontal (foot ahead).
VS applicator: dispenses the label vertical from bottom to top (head ahead).

After taking the label the next one is dispensed already.

The applicators are available in three widths: 60 mm, 120 mm and 180 mm.

Special Features:
• High-performance labeling head driven by a servo motor
• Pre-printed labels can be fast and accurately applied on products or packaging
• Modular construction kit
• Chassis depth 54 mm for installation in labeling machines
• Intuitive smartphone-like user navigation
• WLAN interface
• Working widths 124 mm to 310 mm
• Processing of label reels up to 310 mm (optionally 410 mm) outer diameter

Always optimally placed

The DYN-Place S series dispensers handle simple labelling requirements in the Speed range up to 30 m/min with top precision. At higher rates of up to 60 m/min the DYN-Place SM series dispensers are used. The step-action Motor Version dispensers the Label with an accuracy of +/0,5 mm. The dispensers are modular in design and can therefore by Extended by retrofitting a variatey and control equipment etc.

Compact design for all applications:
• Control Systems including operating unit in an external 19" housing
• A variety of cable lengths make it possible to attach the control system in the mose accessible position
• Easily integrated into existing and new packaging lines
• Different dispenser tongues (fixed tongue, pneumatical label Transfer station, movable dispenser tongue, pneumatic and magnetic dispensing tongue) guarantee precision labelling.
• Suitable for labelling a wide variety of products simple fast to operate, yet intelligent
• Operator guidance via a 2-line, illuminated LCD Display in the language of your choice
• Product Memory for fast simple conversion to another product
• Constant Monitoring of the labelling process
• Clear text Display for end of Label tape, torn carrier tape or other machine states

For example, the following are available as an option: thermal Transfer printer, hot stamping unit, relief embossing unit, book printing ink unit, label prior warning, 5,7" touch panel, RS232 interface or an Ethernet interface, speed adaption, mechanical label scanning, label scanning by means of ultrasonic sensor, thanks to the IPZ manager, which is available as an option, and which communicates with the dispenser via an RS232 interface or the Ethernet interface, it is possible to control and monitor the machine from the PC without any problems.

By using the this label presenter, every label is placed on a roll-platform and is prepared for the correct label-receiving with the according pick-and-place machine.
In that workflow labels are affixed, as if they are a further component of the assembly line.

Advantages:

• High profitability compared to manual affixing
• Easy integration into existing assembly lines
• Replaces cost-intensive label assembly lines
• Upgrades the accuracy of the label placing

The labelfeeder is available in different design construction for all common assembly machines, e.g. Siplace.
